HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : H901XSED

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 03032VUV

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-port Symmetric 10G XGS-PON Interface Board

Product Desription:

Huawei 8-port Symmetric 10G GPON (XGS-PON) OLT Interface Board

Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Support split ration 1:256

Forwarding capability: 80Gbit/s

Rate mode: Asymmetric & Symmetric

Transmit Speed: 9.953 Gbit/s

Receive Speed: 9.953 Gbit/s & 2.488 Gbit/s

Interface Type: SC/PC

Maximum transmission distance: 40 km

10G-GPON optical module Overload Optical Power: -7 dBm

H901XSED is a 8-port Symmetric 10G GPON (XGS-PON) interface card of Huawei MA5800 series OLT. It works together with the ONU to provide symmetric 10G GPON access services.

Specification:

Specification
Service ports
GPON Port 8 Symmetric 10G GPON Port
Function
Forwarding capability 80 Gbit/s
Rate mode

Asymmetric

Symmetric
T-CONTs per PON port 2048
Service flows per PON board 16376
Maximum Frame Size

2052 bytes

9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072

Maximum distance difference between two

ONUs under the same PON port

 40 km
FEC Bidirection
Queue scheduling hierarchy 4-level HQoS
1588v2 Not supported
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength Tx: 1577 nm Rx: 1270 nm
Encapsulation Type 10G-GPON
Port Rate

Tx: 9.953 Gbit/s

Rx: 9.953 Gbit/s & 2.488 Gbit/s
Minimun Output Optical Power 2 dBm
Maximum Output Optical Power 6 dBm
Maximum Receiver Sensitivity -28 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Overload Optical Power -6 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 108 W; Maximum: 151 W
Operating temperature -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2)

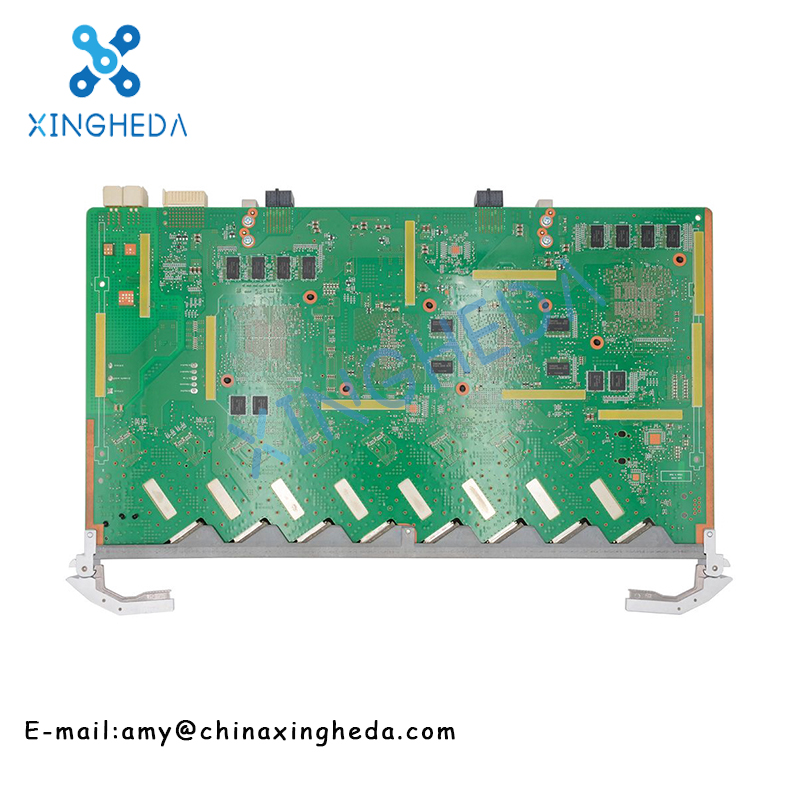

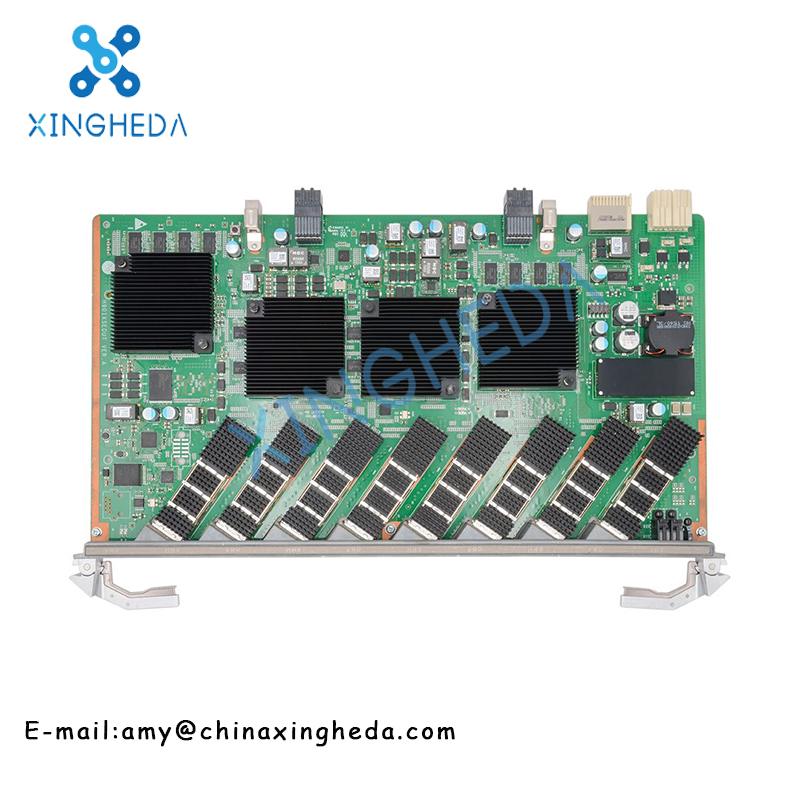

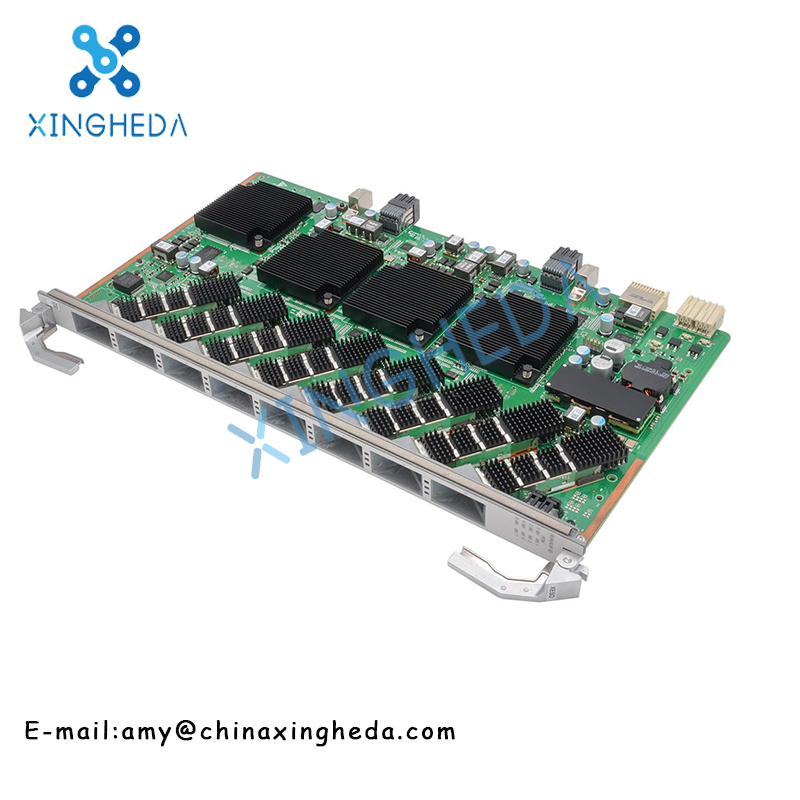

Product details:
HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board

HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board

HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board
HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board
HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board
HUAWEI XSED H901XSED 03032VUV Huawei MA5800 8-Port Symmetric 10G XGS-PON Interface Board
