HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : H901GPSF

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 02311FGC

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16-port GPON OLT interface board

Product Desription:

Huawei 16-GPON Port Interface Card with C+ SFP module
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Support split ration 1:128
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Interface Type: SC/PC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

GPSF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPSF can maximum access 16*128 GPON subscribers.

Specification:

Specification
Service ports
GPON Port16-GPON Port
GPON SFP Module Specification
TypeC+ Module : One-fiber bi-directional optical module, class C+
Operating WavelengthTx: 1490 nm, Rx: 1310 nm
Encapsulation TypeSFP
Port RateTx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical PowerC+ Module : 3.00 dBm
Maximum Output Optical PowerC+ Module : 7.00 dBm
Maximum Receiver SensitivityC+ Module : -32.00 dBm
Optical Connector TypeSC/PC
Optical Fiber TypeSingle-mode
Reach20.00 km
Overload Optical PowerC+ Module : -12.0 dBm
Extinction Ratio8.2 dB
Device Specifications
Dimensions (W x D x H)23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power ConsumptionStatic: 25W; Maximum:50W
Maximum Frame Size2004 bytes
9216 bytes (jumbo frame enabled)
Operating temperature-40°C to +65°C



Product details:

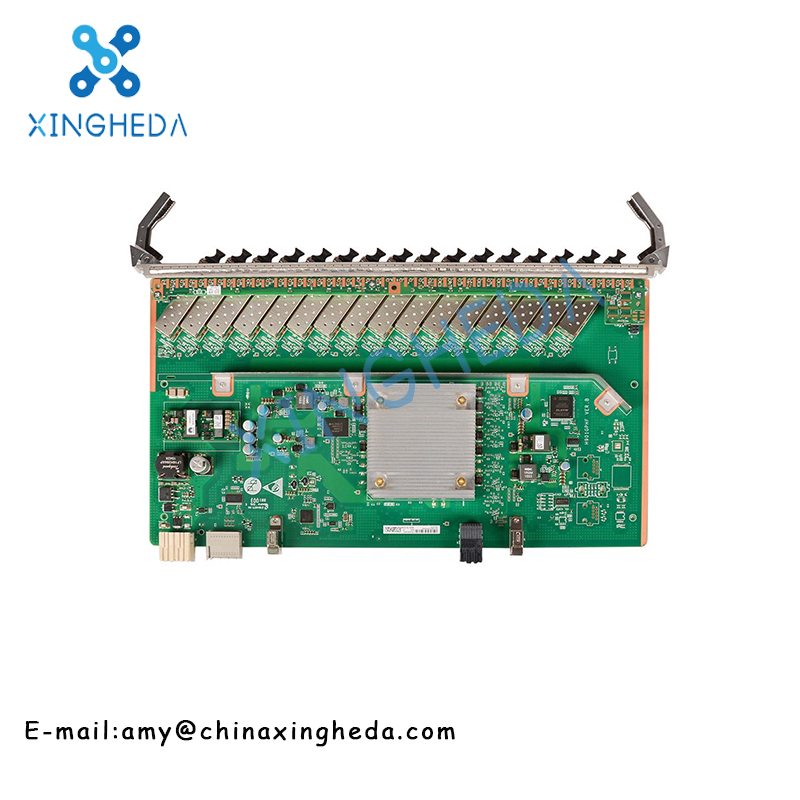

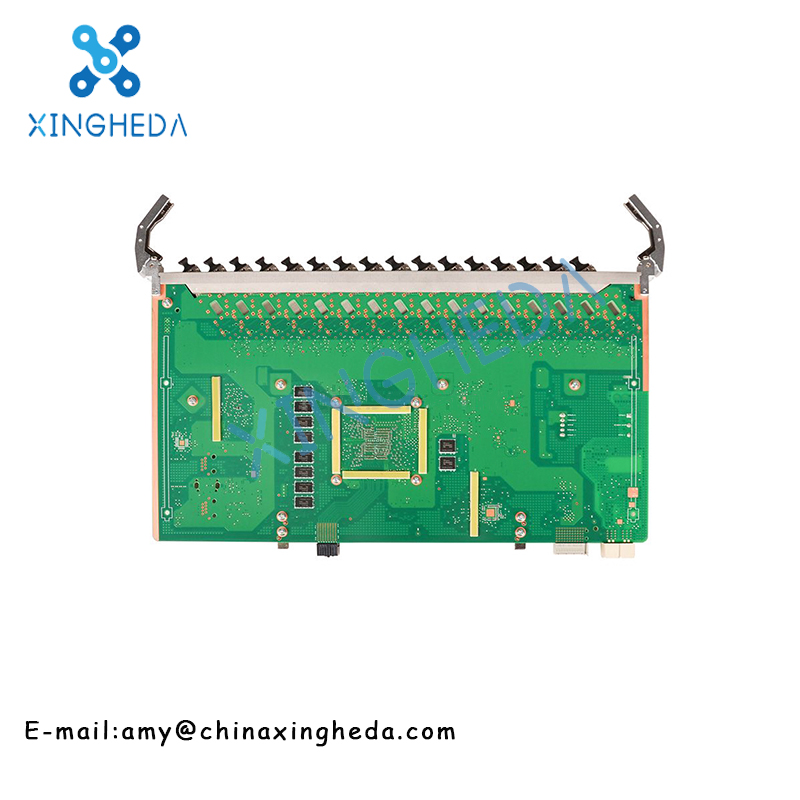

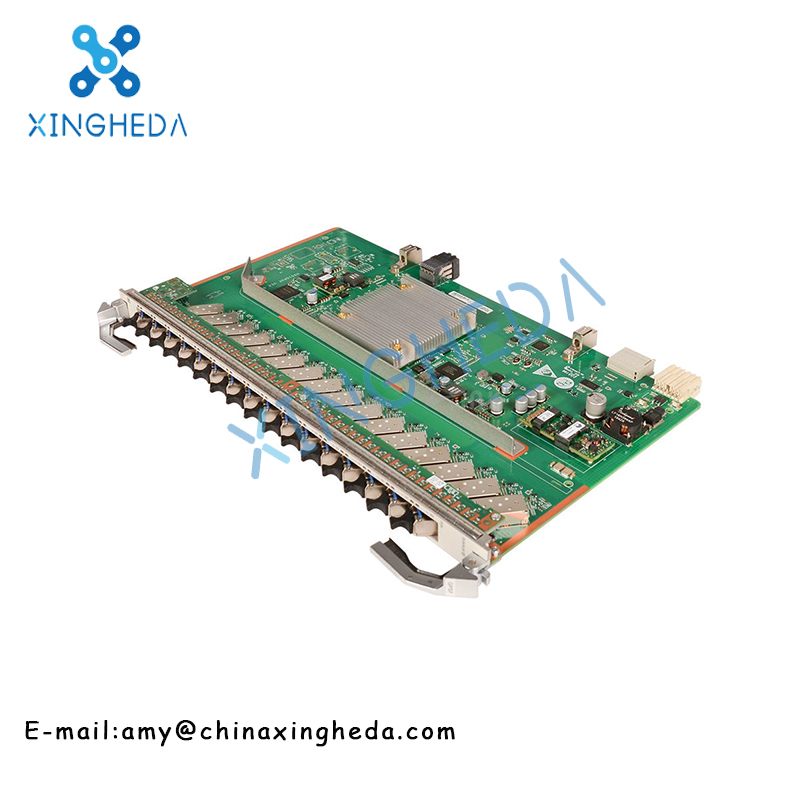

HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
HUAWEI GPSF H901GPSF 02311FGC Huawei MA5800 16 - Port GPON OLT Interface Board
