HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : H901GPHF

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 02311EPT

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 series 16-port GPON OLT interface board

Product Desription:

Huawei 16-GPON Port Interface Card with C+ SFP module
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Max split radio 1:128
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Interface Type: SC/PC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

GPHF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.

Specification:

Specification
Service ports
GPON Port 16-GPON Port
GPON SFP Module Specification
Type B+ Module : One-fiber bi-directional optical module, class B+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power B+ Module : 1.50 dBm
Maximum Output Optical Power B+ Module : 5.00 dBm
Maximum Receiver Sensitivity B+ Module : -28.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power B+ Module : -8.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25W; Maximum:50W
Maximum Frame Size 2004 bytes
9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C

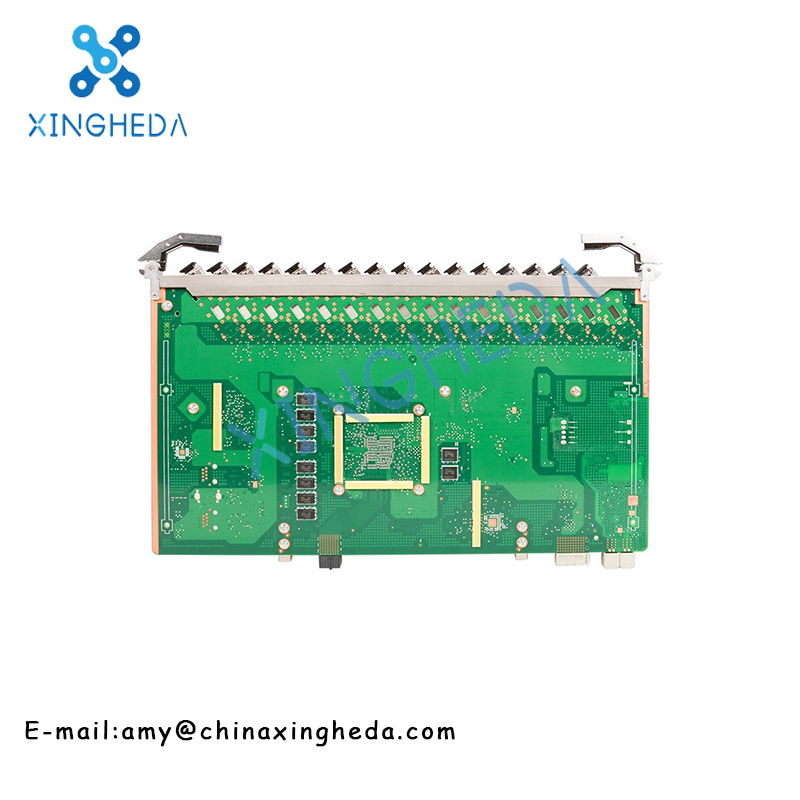

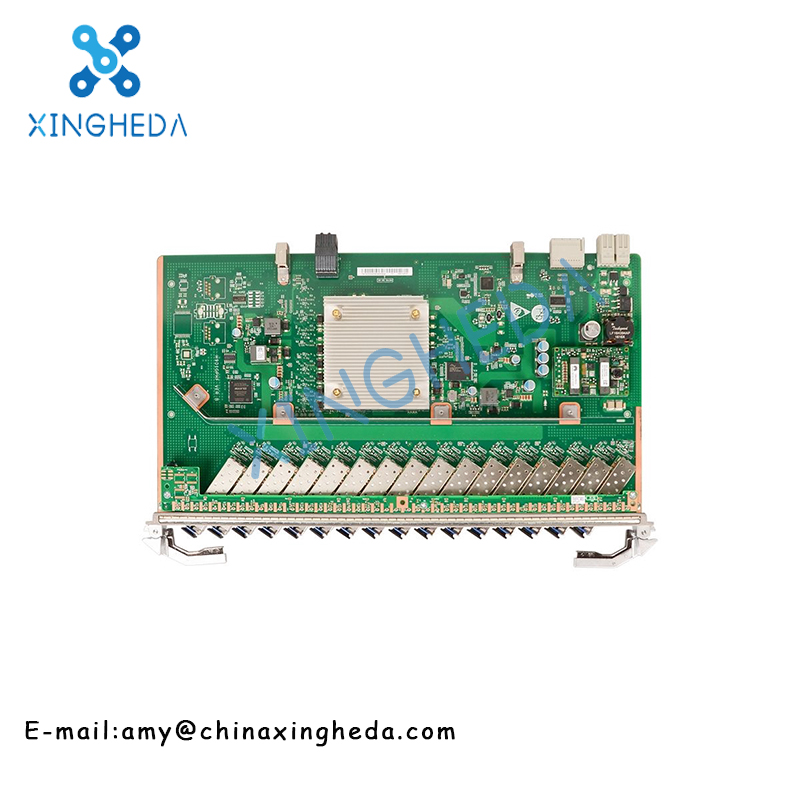

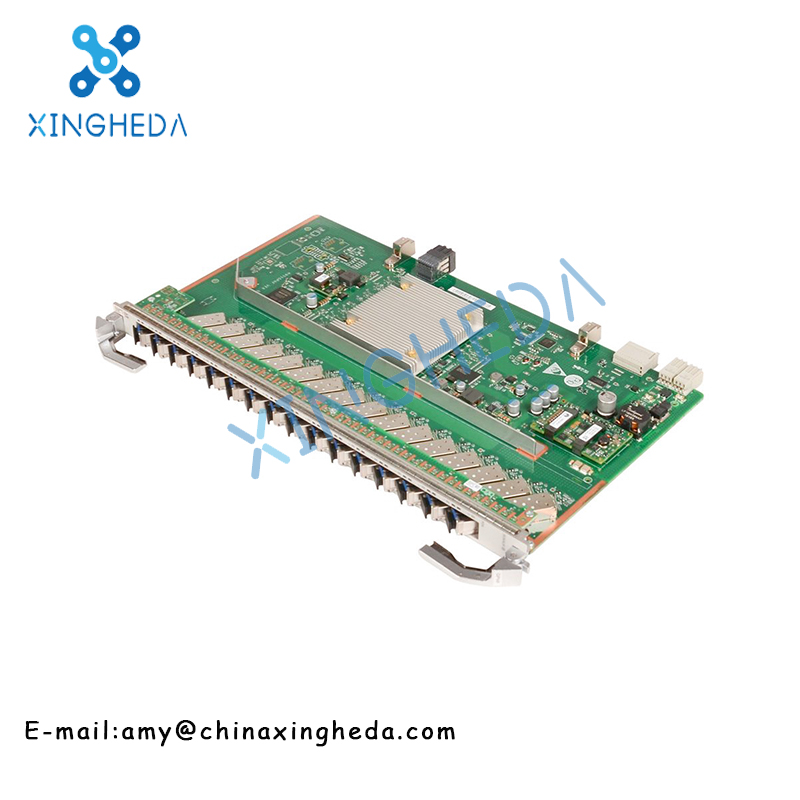

Product details:
HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board

HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board

HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board
HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board
HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board
HUAWEI GPHF H901GPHF 02311EPT Huawei MA5800 Series 16 Port GPON OLT Interface Board
