ELTEK Flatpack S 36V/1000W HE UI 241122.235 Rectifier Module

Changsha Xingheda Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ELTEK Flatpack S 36V/1000W HE UI 241122.235 Rectifier Module

  • 1
  • 2
  • 3

Brand Name : ELTEK

Model Number : Flatpack S 36V/1000W HE UI

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : power module

Products status : Stock

Product name : 241122.235

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

ELTEK Flatpack S 36V/1000W HE UI 241122.235 rectifier module

Product Description:

ELTEK Flatpack S 36V/1000W HE UI 241122.235 rectifier module is used in the 3U rack with Smartpack S controller, the Flatpack S rectifiers cover 2 to 8kW applications using a minimum of space, less than 18 liters, and low heat dissipation.

Model

36/1000 HE UI

Part number

241122.235

INPUT DATA

Voltage (nominal)

185 - 400 VDC / 185 - 275 VAC

Voltage (operating range)

85 - 400 VDC / 85 - 305 VAC

Frequency

DC, 16 2/3 Hz, 45 - 66 Hz

Current (maximum)

5.9 ADC / 5.9 ARMS

Protection

Fuse in Positive & Negative, Reversed polarity insensitive, Shutdown above 420 VDC / 305 VAC

OUTPUT DATA

Voltage

40 VDC

Voltage (adjustable range)

331) - 45 VDC

Power (maximum) @ nominal input

1000 W / 450 W @16 2/3 Hz input

Power (maximum) @ 85 VDC / 85 VAC input

440 W / 440 W

Current (max cont.) @ nominal input

27.8 A (@VOUT < 36 VDC)

Hold up time, maximum output power

>10ms; output voltage > 33 VDC

Current sharing (10 - 100% load)

±5% of maximum current from 10 to 100% load

Static Voltage regulation (10 - 100% load)

±0.5%

Dynamic Voltage regulation

±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms

Ripple

< 150 mVPP , 30 MHz bandwidth

Protection

ORing FET Short circuit proof

High temperature protection Over voltage Shutdown

OTHER SPECIFICATIONS

Efficiency

> 95 %

Isolation

4.2 kVDC - input to output

2.25 kVDC - input to earth 710 VDC - output to earth

Alarms: Red LED

Low and high input voltage, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure when fan stops, Low output voltage alarm, CAN bus failure

Warnings: Yellow LED

Rectifier in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller

Normal operation: Green LED

Alarm relay (NO - opens when de-energized)

Opens on Alarms and missing input voltage.

MTBF (Telcordia Issue 3 & Method II Case L1)

>2 700 000 (@ Tambient : 25 °C)

Operating temperature (5-95% RH n.cond. hum.) Maximum output power de-rates above temp / to

-40 to + 85°C [-40 to +185°F] 45°C [140°F] / 400W @ 85°C [185°F]

Storage temperature

-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing

Dimensions[WxHxD] / Weight

72 x 40 x 217mm2) (2.84 x 1.57 x 8.54”)2) / < 850 g (1.9 lbs)

DESIGN STANDARDS

Electrical safety

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

EMC

EN 61000-6-1:2007, -6-2:2005, - 6-3:2007 + A1:2010, - 6-4:2007 + A1:2010

EN 50121-1:2015, -2:2015, -4:2015, -5:2015

Environment

ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

RoHS (2011/65/EU) and WEEE (2012/19/EU) compliant

Product Details:

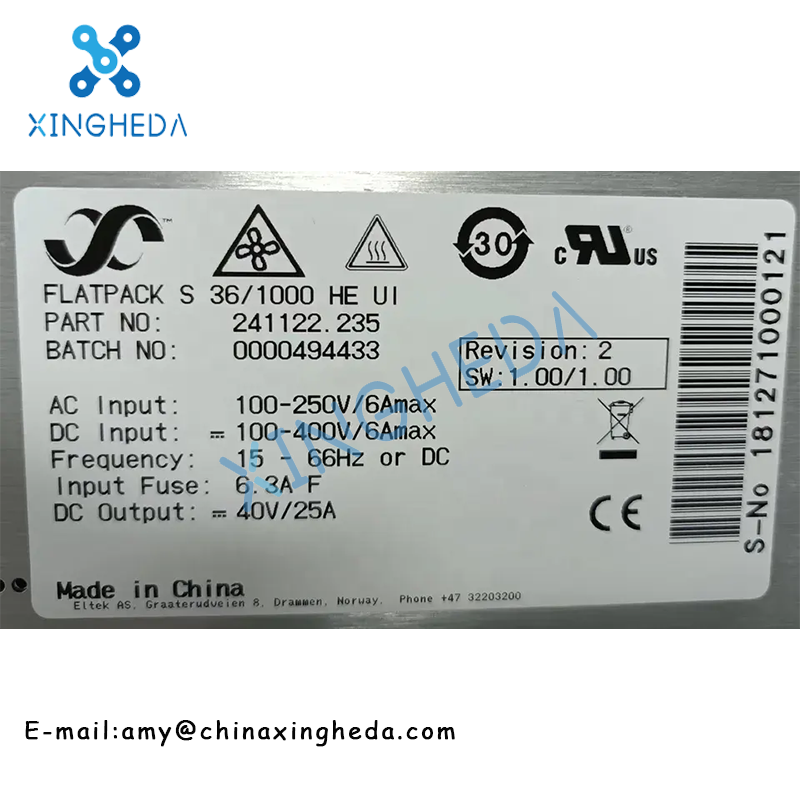

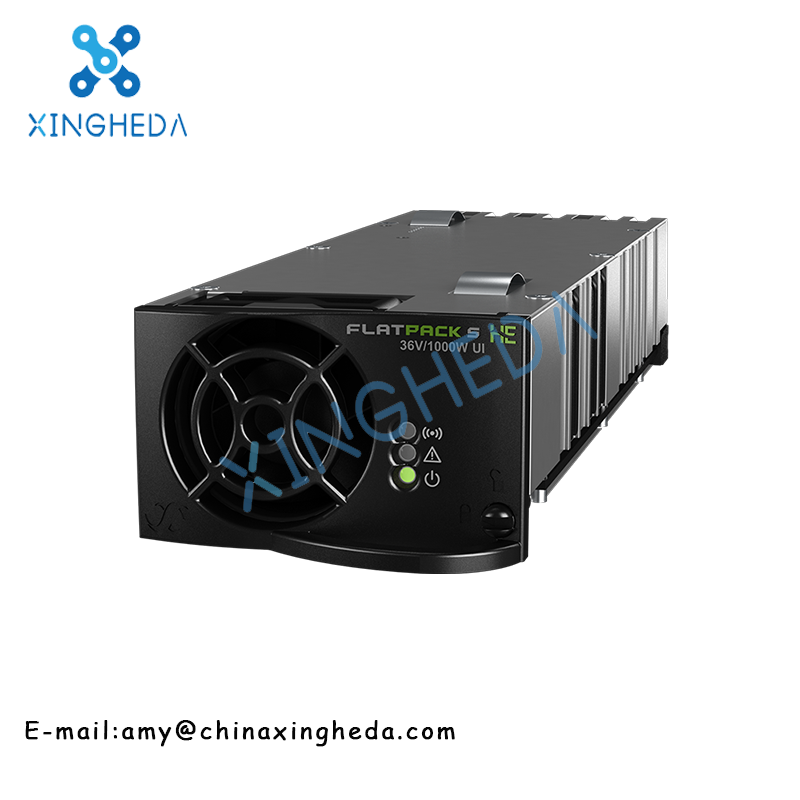

ELTEK Flatpack S 36V/1000W HE UI 241122.235 Rectifier Module

ELTEK Flatpack S 36V/1000W HE UI 241122.235 Rectifier Module


If you are interested, please let us know the specific model. We will provide the best service and the best price!
